NL Series 4,500lb-7,800lb Li-ion Battery Forklift
The NL series new lithium battery forklift, capacity from 2,000 to 3,500kg, adopts UN internal combustion forklift ‘s design with the strong chassis, frame, counterweight and mast.
The power structure is designed to adopt UN electric forklift’s concept, which use full AC system, Italian imported ZAPl controller, BMS control system and high quality lithium battery.
This combination of IC forklift and electric forklift makes an ideal solution to reach customers’ satisfaction on cost saving and environmental friendly.
Strong And Durable Chassis
● Using the IC truck structures, which has been tested by the market for more than 20 years.
● Inside the forklift, we use advanced lithium technology to ensure it’s working performance.
Long Term Performance
● The battery can be charged and discharged 3500 times. With 5 years guarantee on lithium battery gives customers great satisfaction and long time life cycle.
Eco-Friendly
● Using low-carbon, clean, and environmental friendly lithium battery.
Lower noise, zero emission, and less vibration.

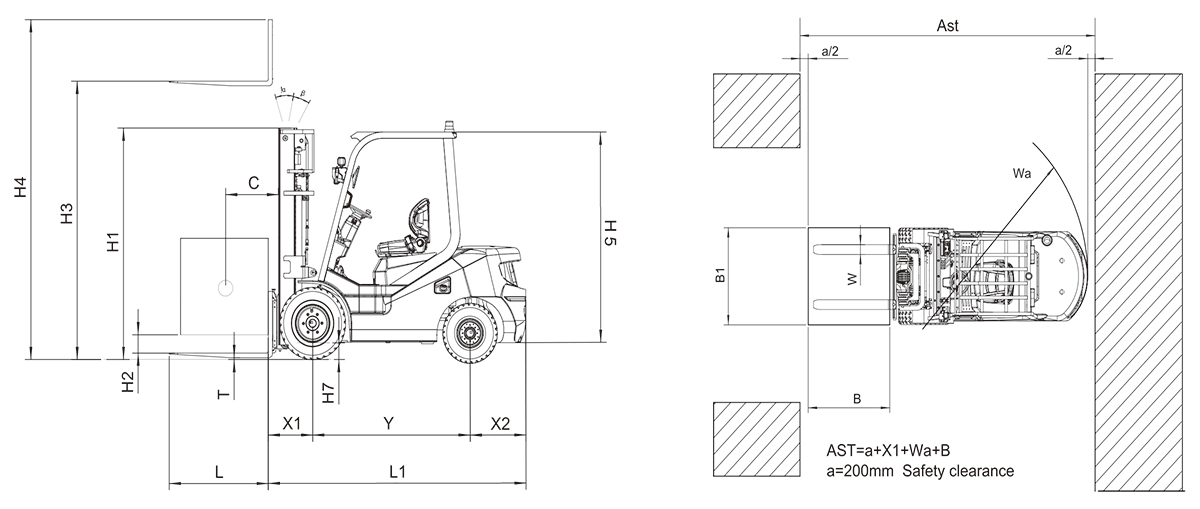

MAIN SPECIFICATIONS (STANDARD PERFORMANCE)
General | 1 | Model |
| FB20 | FB25 | FB30 | FB35 |
2 | Rated Load Capacity | Q(kg) | 2000 | 2500 | 3000 | 3500 | |
3 | Load Centre | C(mm) | 500 | 500 | 500 | 500 | |
| Characteristic & Dimension | 4 | Rated Lift Height | H3(mm) | 3000 | 3000 | 3000 | 3000 |
5 | Free Lift Height | H2(mm) | 100 | 100 | 100 | 100 | |
6 | Fork Size (LxWxT) | mm | 1070x120x40 | 1070x120x40 | 1070x125x45 | 1070x125x50 | |
7 | Mast Tilt Angle (F/R, α°/β°) | deg | 6°/12° | 6°/12° | 6°/12° | 6°/12° | |
8 | Fork Overhang (Wheel Center to Fork Face) | X1(mm) | 479 | 479 | 484 | 484 | |
9 | Rear Overhang | X2(mm) | 520 | 520 | 595 | 635 | |
10 | Ground Clearance (Bottom of Mast) | H7(mm) | 130 | 130 | 145 | 145 | |
11 | Length to Face of Fork (Without Fork) | L1(mm) | 2660 | 2660 | 2700 | 2775 | |
12 | Overall Width | B1(mm) | 1150 | 1150 | 1225 | 1225 | |
13 | Mast Lowered Height | H1(mm) | 2055 | 2055 | 2070 | 2070 | |
14 | Mast Extended Height (With Backrest) | H1(mm) | 4070 | 4070 | 4070 | 4070 | |
15 | Overhead Guard Height | H5(mm) | 2215 | 2215 | 2235 | 2235 | |
16 | Turning Radius (Outside) | Wa(mm) | 2365 | 2365 | 2625 | 2500 | |
17 | Min.Aisle width for pallets | Ast(mm) | 4120 | 4120 | 4180 | 4255 | |
| Performance | 18 | Travel Speed (Full Load/No Load) | km/h | 11/12 | 11/12 | 11/12 | 11/12 |
19 | Lifting Speed (Full Load/No Load) | mm/sec | 260/380 | 260/380 | 250/360 | 220/340 | |
20 | Lowering Speed (Full Load) | mm/sec | 450 | 450 | 450 | 450 | |
21 | Max.Gradeability (Full Load) | % | 15 | 15 | 12 | 12 | |
| Chassis | 22 | Tyre (Front x 2) | mm | 7.00-12-12PR | 7.00-12-12PR | 28×9-15-12PR | 28×9-15-12PR |
23 | Tyre (Rear x 2) | mm | 6.00-9-10PR | 6.00-9-10PR | 6.50-10-10PR | 6.50-10-10PR | |
24 | Front Tread | B2(mm) | 970 | 970 | 1000 | 1000 | |
25 | Rear Tread | B3(mm) | 980 | 980 | 980 | 980 | |
26 | Wheelbase | Y(mm) | 1650 | 1650 | 1700 | 1700 | |
| Weight | 27 | Total Weight | kg | 3385 | 3605 | 4460 | 4775 |
28 | Front Axle Weight Distribution (No Load/Full Load) | kg | 1354/4846 | 1442/5494 | 1784/6714 | 1910/6997 | |
29 | Rear Axle Weight Distribution (No Load/Full Load) | kg | 2031/538 | 2163/610 | 2676/746 | 2865/777 | |
| Power & Transmission | 30 | Battery | V/Ah | 80V/150AH | 80V/175AH | 80V/220AH | 80V/270AH |
31 | Drive Motor | KW | 10 | 10 | 10 | 10 | |
32 | Lift Motor | KW | 12 | 12 | 12 | 12 | |
33 | Operating Pressure (For Attachments) | Mpa | 17.5 | 17.5 | 17.5 | 17.5 |
