N Series 4,000-10,000lb 4Wheel Li-ion Battery Forklift
The N series lithium battery forklift, capacity covers 1.5 ton to 3.5 ton.
Developed from the lead acid battery model. Use the top brand lithium battery, full AC system, Italian imported ZAPl controller, BMS control system.
maintenance.
email: contact@forkeq.co
Reliability & Performance
● Zero-Emission, longer life time of battery, it could be charged and discharged over 3500 times.
● Fast charging, 2.5 hours for a full charge. And it can be interrupted any time.
● The full AC technology combines with the Italian ZAPI electric controller and top AC motors.
● The energy regeneration function extends working hours.
● CAN bus communication system provides a better understanding of the forklift.
Safety & Ergonomics
● Automatic turning speed deceleration according to the turning angle, it guarantees the safety and stability.
● BMS system make sure the lithium battery runs well.
● OPS, Seat switch ensures a safe operation.
● Strong OHG protects the operator from any falling objects.
● Wide view mast offers good visibility.
● Small steering wheel & wide foot space and optimized foot pedal position.

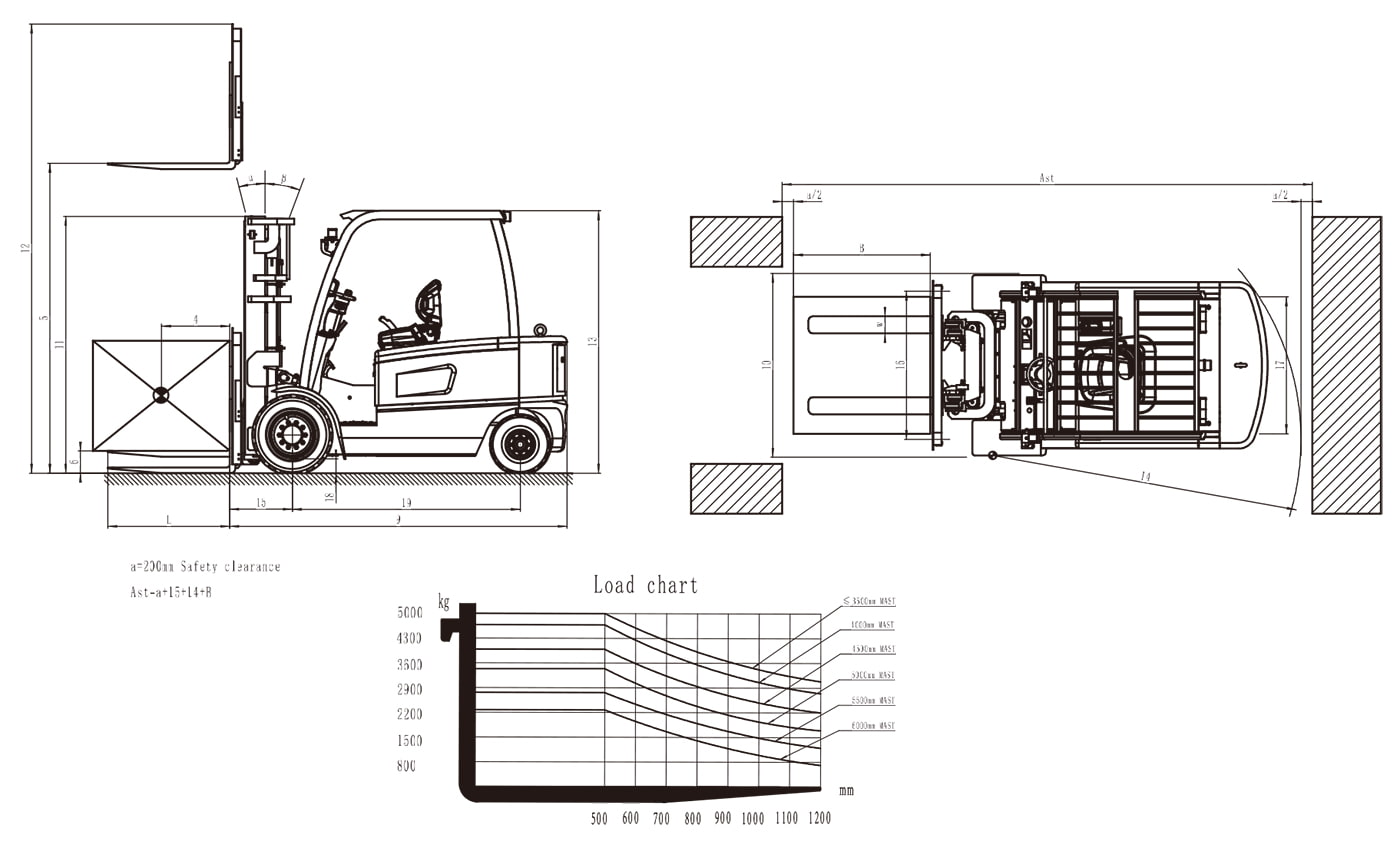

4.0-5.0 TON 4-WHEEL ELECTRIC FORKLIFT MAIN SPECIFICATIONS
| Specification | 1 | Manufacturer |
| UN | |
2 | Model |
| FB40/45 | FB50 | |
3 | Rated Load Capacity | Qlkg) | 4000/4500 | 5000 | |
4 | Load Centre | C(mm) | 500 | 500 | |
5 | Lift Height | H3(mm) | 3000 | 3000 | |
6 | Free Lift | H2(mm) | 84 | 84 | |
7 | Fork Size (LxWxT) | L/W/T(mm) | 1070x150x50 | 1070x150x50 | |
8 | F/B(α°/β°) | Deg | 6°/9° | 6°/9° | |
| Dimension | 9 | Length (To Fork Face) | L1 (mm) | 2940 | 2940 |
10 | Width | B1(mm) | 1612 | 1612 | |
11 | Mast Lowered Height | H1(mm) | 2250 | 2250 | |
12 | Mast Extended Height (With Backrest) |
| 4260 | 4260 | |
13 | Overhead Guard Height | H5(mm) | 2300 | 2300 | |
14 | Turning Radius | Wa(mm) | 2705 | 2705 | |
15 | Fork Overhang (Wheel Center to Fork Face) | X(mm) | 550 | 550 | |
16 | Front Tread | B2(mm) | 1300 | 1300 | |
17 | Rear Tread | B3(mm) | 1200 | 1200 | |
18 | Ground Clearance | H6(mm) | 125 | 125 | |
19 | Wheelbase | Y(mm) | 2000 | 2000 | |
20 | Fork Spread (Min/Max) | mm | 250/1380 | 250/1380 | |
21 | Working Aisle Width With Pallet (1200×1200) | Ast(mm) | 4655 | 4655 | |
| Performance | 22 | Travel Speed (Full Load) | km/h | 12.5 | 12.5 |
23 | Travel Speed (No Load) | km/h | 13.5 | 13.5 | |
24 | Lifting Speed (Full Load) | mm/s | 290 | 270 | |
25 | Lifting Speed (No Load) | mm/s | 400 | 380 | |
26 | Max.Gradeability (Full Load) | % | 12 | 12 | |
27 | Max.Gradeability (No Load) | % | 13 | 13 | |
28 | Total Weight (Include Battery Box) | kg | 7020 | 7280 | |
29 | Tyre (Front x 2) |
| 28×12.5-15 | 28×12.5-15 | |
30 | Tyre (Rear x 2) |
| 21×8-9 | 21×8-9 | |
| Drive | 31 | Diver Motor | kw | 11×2 | 11×2 |
32 | Pump Motor | kw | 25.4 | 25.4 | |
33 | Battery (Standard) | V/Ah | 80/840 | 80/840 | |
Li-ion battery | V/Ah | 83.2/600 | 83.2/600 | ||
34 | Controller Type |
| AC | AC | |
35 | Controller Manufacturer |
| ZAPI | ZAPI | |
36 | Operating Pressure | Mpa | 20 | 20 | |
